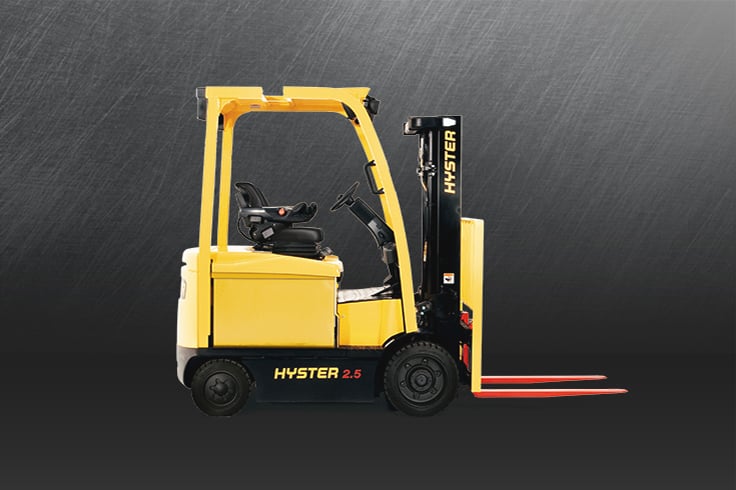

Hyster heftruck
E2.2-3.5XN

Durable components mean less downtime for service. The standard AC traction and hydraulic motors set the standard in materials handling, significantly reducing maintenance requirements. Hyster-designed thermal management system maximizes performance during continuous operation, while preventing damage to components due to heat.

• Two-piece steel floor plate and side plates are easily removed to provide instant service access.
• Lift-out floor plate requires no tools for operator checks.
• CANbus communications simplifies wiring and improves serviceability.
• On-board diagnostics reduce repair time and minimize expensive part-swapping.
• Easy battery access is provided via the gas spring-assisted hood and quick release handle.

The E2.2-3.5XN series lowers your cost of operations by delivering increased productivity, lowered energy consumption, advanced dependability and reduced maintenance costs.

According to the VDI Energy Cycle Standardized Test, the E2.2-3.5XN series provides the lowest energy consumption among competitors. Pacesetter VSM (Vehicle System Manager) enables customization of truck performance.

The superior ergonomic design of the E2.2-3.5XN series means greater comfort for your operator. Enhanced ergonomics combined with customizable performance characteristics increase overall productivity and uptime.

• Easy-to-use 3-point entry design of operator compartment uses a molded hand grip and armrest/hip restraint to minimize muscle/joint strain.
• Seat Side Mechanical Levers are positioned for maximum comfort and offer an optional integrated thumb-actuated directional control switch.
• Adjustable steer column assures the right fit.
• Choice of 6 different seats enables a more customizable level of comfort.
• 30cm steering wheel with integrated spinner knob reduces fatigue, provides more knee room, and goes lock-to-lock in just 4 turns.
• Optional auxiliary DC converter provides an automotive-style 12-volt outlet and an auxiliary power tap for customer installed accessories.

Customizable performance that matches operator skill with individual performance needs enables the E2.2-3.5XNseries to give maximum productivity throughout the entire shift.

• Adjustment of customizable performance parameters to match your application needs is accessible via the multifunction display and technician password protection.
• A significant increase in loaded travel speeds and acceleration rates beyond the standard setting is possible when the Extended Shift setting is turned off.
• Standard Extended Shift AC controller settings provide the optimum balance between performance needs and battery shift life.
• Pacesetter VSM (Vehicle System Manager) enables customisation of truck performance to suit application needs.
